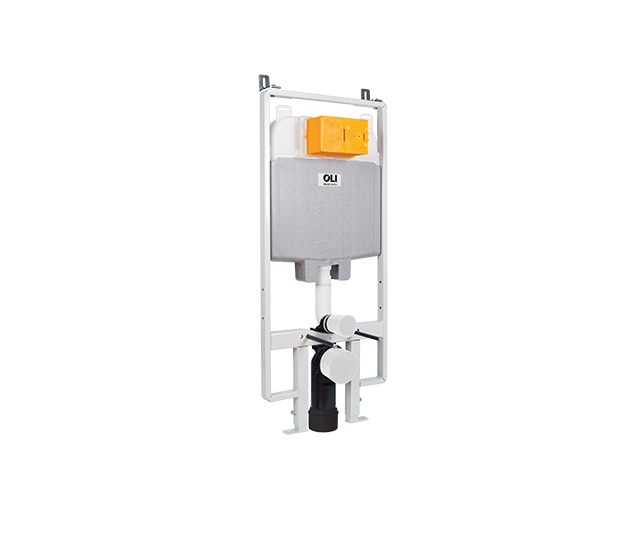

OLI74 Plus S90 Sanitarblock
In-Wall Installation Systems

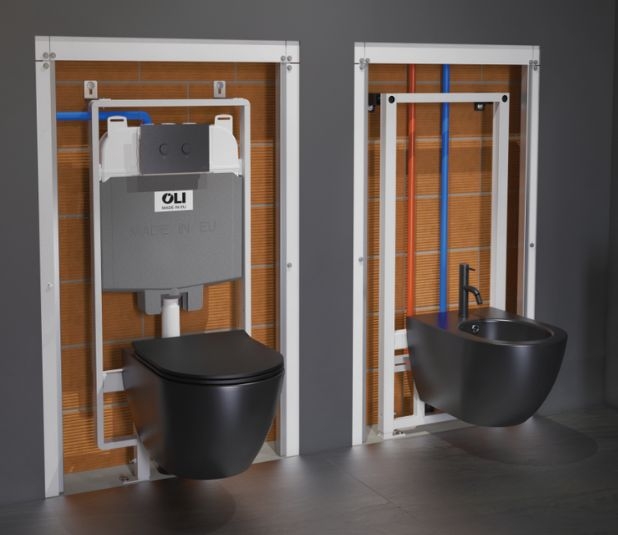

In-wall cistern for thin walls. OLI presents one of the best solutions for bathrooms with solid wall or drywall and installation of wall-hung toilets. The S90 means that the cistern has a depth of 90mm, which makes ideal for thin walls.
Version
Mechanic S90 Sanitarblock Nano
Mechanic S90 Sanitarblock
Mechanic 4/2L S90 Sanitarblock
Mechanic 4/2L S90 Sanitarblock Nano
Mechanic S90 Sanitarblock 2 Inlet Valves Nano
Mechanic S90 Sanitarblock 2 inlet valves
Mechanic OLIPure Sanitarblock S90
Pneumatic - Nano Plus
Pneumatic S90 Sanitarblock
Electronic S90 Sanitarblock
Cap Hydroboost S90 Sanitarblock
Cap AC S90 Sanitarblock
Code . 880792
Characteristics
- Compatible with all wall-hung toilets;
- Solid wall or drywall installation;
- Easy and quick installation;
- Depth adjustable outlet bend;
- Height adjustable from 0 to 150mm;
- Option kit to adjust until 300mm;

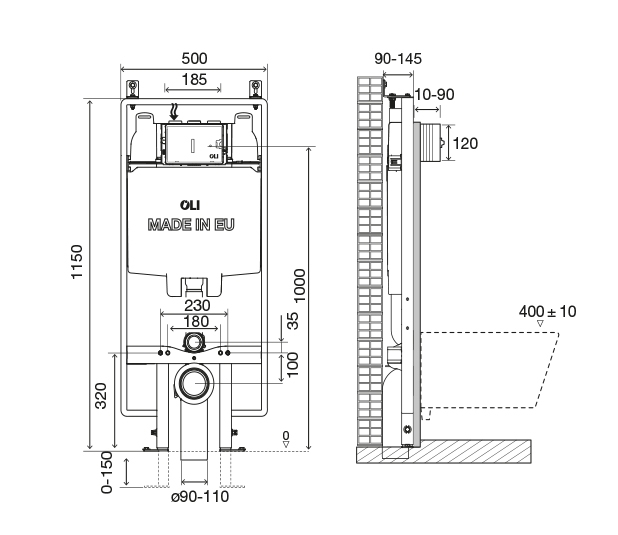

- 90mm thick.
Included
- Wall fixing kit;
- G ½’’ stop valve;
- Inlet and outlet toilet connection;
- Toilet fixing material (when applicable);
- Outlet bend and Ø90/110 adaptor (when applicable).
